05 . FT-6025 180°翻轉頭HDMI線 高清線1.4版 3D數據線 4k電腦電視連接線
聯系信息
- 電話:
0519-86462107 - 傳真:0519-86471707
- 地址:常州市武進高新技術產業開發區鳳林南路207號
- 產品詳情
Product Features:
● 1.Rated temperature:80℃
● 2.Rated voltage:30V
● 3.Reference standard:Hight-definition Mulitimedia interface specification version 1.4

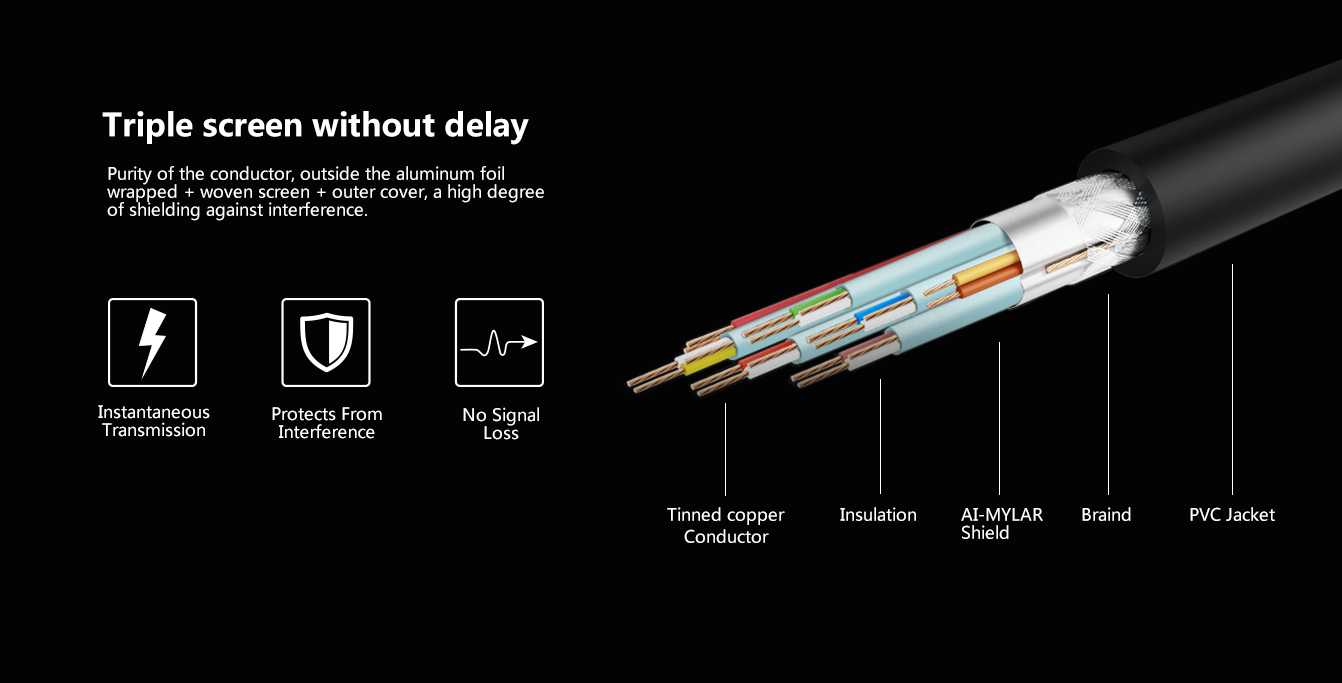

● 4.Stranded tinned copper conductor,32-22AWG
● 5.Color-coded foam PE or PE insulation
● 6.Over 85% coverage tinned copper or copper alloy braid shield
● 7.Leed free PVC jacket
● 8.Passes UL VW-1 & CSA FT1 vertical flame test
● 9.HDMI ethernet channel
● 10.Audio return channel
● 11.3D over HDMI
● 12.4K x 2K resolution support
● 13.Expanded support for color spaces
● 14.Micro HDMI connector
● 15.Automotive connection system
Electrical characteristic:
● 1.Differential impedance (20℃):100±10?
● 2.Differential delay ≤ 4.5ns/m
● 3.Propagation delay skew: Within a pair: ≤ 111ps/m Between pairs: ≤ 1.78ns/m
● 4.Far and cross-talk: ≤-20dB,1-5100MHz
Attenuation(NA):
Frequency(MHz) | Attn.dB(Max) |
1~825 | -5 |
5100 | -25 |
