華晟福濤
華晟福濤光電科技    華晟福濤
首頁 > 產品列表 > 新能源 >光伏接線盒 >FT-003光伏接線盒

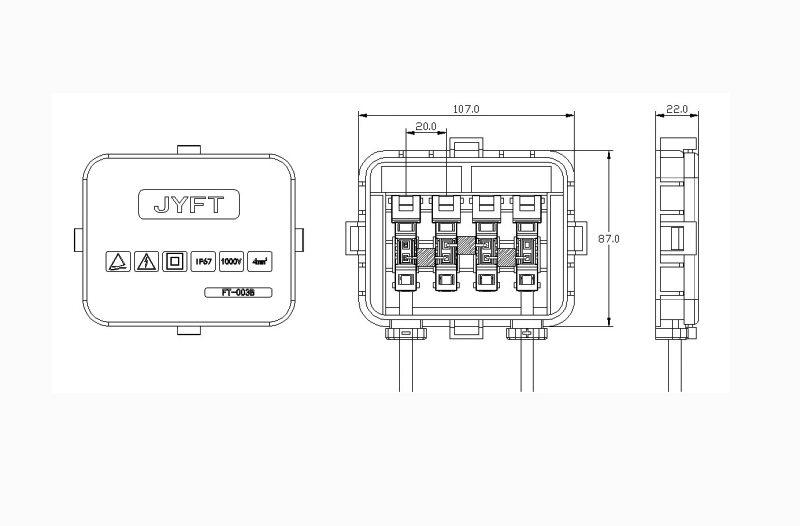

FT-003光伏接線盒
FT-003光伏接線盒FT-003光伏接線盒FT-003光伏接線盒FT-003光伏接線盒

FT-003光伏接線盒

防護等級IP67 非灌膠型 3個二極管 4個端子
發布日期:2019/11/28
  • 產品詳情
 Product Features:

    High current and voltage carrying capacity.

    Simple, quick and safe effective field assembly.

    The outer cover has the capacity of anti-aging and resistance to ultraviolet radiation.

    It can be used in the outdoor iron environment.

    Expansion connector are available for future requirement.

    Double permanent connection are adoptered for all of the connecting.

Structure:


Number of terminals

4

Number of diodes

3

Cable Spec

4mm2

Connection method

Clamp

Weight

275(g)


Specifications:

Rated current

10A/15A

Rated Voltage

1000V

Operating Temperature

-40℃ to 85℃

Protection Degree

IP65

Protection Class

Class II
