- 產品詳情
Product Features:● With the capacity of age and UV-resistance.
● The PV-Junction box can in the atrocious weather.
● Found in outdoor use under harsh environmental conditions required.
● Crimp connection is used for the solar cable.
● Welding connections is used for ribbon band.
● More convenient installation and maintenance.

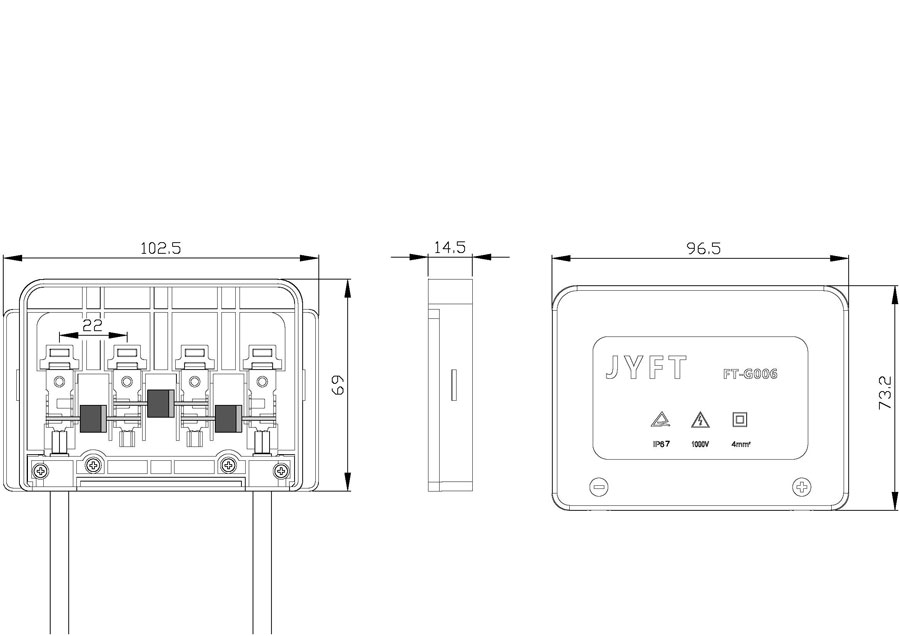

Structure:
Number of terminals | 4 |
Number of diodes | 3 |
Cable Spec | 4mm2 |
Connection method | Clamp |
Weight | 213.5(g) |
Specifications:
Rated current | 12A/15A |
Rated Voltage | 60V |
Operating Temperature | -40°C to 85°C |
Protection Degree | IP65 |
Protection Class | Class II |
